Name of Equipment |
|

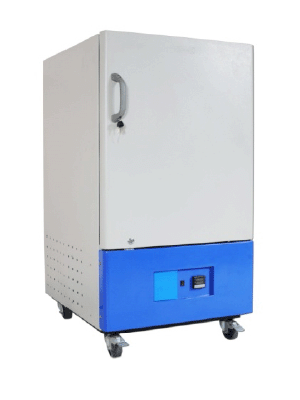

B.O.D. Incubator |
| |
|
|
|
| |
Make |
|
“Authentic” |
| |
|
|
|
| |
Model No. |
|
Vertical |
| |
|
|
|
| |
Capacity |
|
6 CFT |
| |
|
|
|
| |
Construction |
|
The Chamber is constructed Triple walled. The interior of the chamber
is made of Stainless Steel and the exterior is made out of Stainless
Steel or G CRCA MS Sheet with two coats of primer and 3 coats of
DUCO paint with Mineral Wool insulation in between. The chamber is
provided with a full front opening door, which is double wall typed with
transparent full view glass door. The door is fitted on the chamber by
heavy duty hinges and locking arrangement. Gasket on the door. |
| |
|
|
|
| |
Insulation |
|
Mineral Wool insulation for better power saving purpose. |
| |
|
|
|
| |
Shelves |
|
2 perforated shelves |
| |
|
|
|
| |
Heating Elements |
|
Nicrom Wire, Porcelain beads and placed three sides in the chamber
for uniform temperature. |
| |
|
|
|
| |
Light Indicators |
|
On – Off switch with plug & cord |
| |
|
|
|
| |
Thermostate |
|
Safety thermostate to prevent over heating |
| |
|
|
|
| |
Controls |
|
Microprocessor Based Digital Temperature Controller, |
| |
|
|
|
| |
Working Temp. Adjustable |
|
5 to 600C ± 0.50C |
| |
|
|
|
| |
Power Supply |
|
Single Phase / 220 Volt A.C., Built in Safety Thermostat, Voltage
Stabilizer / UV Lamp 1.5 ft. with complete accessories. |
| |
|
|
|
| |
Cooling Unit |
|
Kirloskar make Compressor which is CFC Fee. |
| |
|
|
|
| |
Fan |
|
2 Nos Air Circulationg Fan to maintain uniformity of temperature |
| |
|
|
|
| |
Stablizer |
|
1 kva |
