Name of Equipment |
|

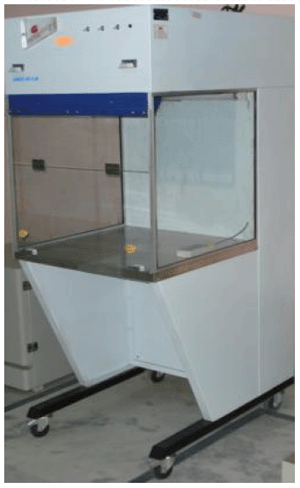

Laminar Air Flow |
| |
|
|
|
| |
Make |
|
“Authentic” |
| |
|
|
|
| |
Model No. |
|
LAF222 |
| |
|
|
|
| |
Size |
|
2’ x 2’ x 2’ |
| |
|
|
|
| |
Features |
|
Floor model, well-lighted, low vibration and noise, easy
to maneuver due to castor wheel provision, with brake
pedal. |
| |
|
|
|
| |
Construction |
|
Constructed of SS/g GI sheet, which is termite & insect
proof, fire & weather resistant covered with high quality &
high pressure white laminated sheet from outside and
painted with corrosion resistant & antifungal epoxy paint
from inside. |
| |
|
|
|
| |
Cabinet |
|
Stainless Steel sheet of 20 SWG lining. |
| |
|
|
|
| |
Front Panels |
|
Removable transparent scratch resistant sheet of 6mm
thickness. |
| |
|
|
|
| |
Side Panels |
|
Fixed transparent scratch resistant sheet of 6mm thickness mounted with anodized aluminum angle. |
| |
|
|
|
| |
Front Door |
|
Made of perplex sheet with anodized aluminum frames &
lock, having arrangement to work with half open door. |
| |
|
|
|
| |
Work Table |
|
Stainless Steel of 20 SWG lining. |
| |
|
|
|
| |
Pre-filters |
|
2 Pre-filters |
| |
|
|
|
| |
Hepafilters |
|
No. 1, Size–48”x24”x 6”, confirms to class 100 levels of
cleanliness as per U.S. Federal Standard 209B with
filtration efficiency 99.9% removal of air born particles as
contaminant. |
| |
|
|
|
| |
Motor Blower |
|
Dynamically balanced & specially constructed to suit low
noise and vibration with adjustable speed Motor (2x 1/6
HP). |
| |
|
|
|
| |
Air Velocity |
|
Double filtered laminar flow air blowing through the
worktable at a nominal controlled velocity of approx.
90ft/per minute. |
| |
|
|
|
| |
Lighting |
|
Fluorescent tube of 4’ length |
| |
|
|
|
| |
Ultra Violet light |
|
Fitted with a suitable germicidal UV tube 3’ length. |
| |
|
|
|
| |
Source |
|
|
| |
|
|
|
| |
Power Supply |
|
220/240 volts, 50 cycles, single phase, provided with
both 5 Amp & 15 Amp plug unit inside the cabinet. |
| |
|
|
|
| |
Line Voltage |
|
Copper wound single phase automatic line voltage |
| |
|
|
|
| |
Corrector |
|
Corrector. |
| |
|
|
|
| |
Manometer |
|
Provided with static pressure manometer accurately
calibrated to assess static pressure Movable in HEPA chamber. |
| |
|
|
|
