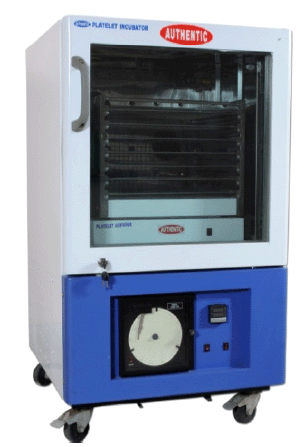

Construction: |
|
The chamber is to be constructed in double wall. The interior of the chamber is to be made of Stainless Steel
and the exterior is made out of Stainless Steel & Control Panel is made of CRCA MS sheet with two coats of

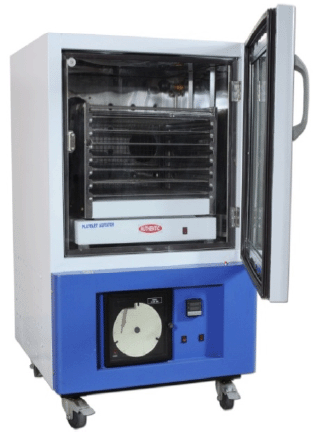

primer and 3 coats of DUCO paint with puf insulation in between. The chamber is to provide with a full front
opening door.. The door is to be fitted on the chamber by heavy-duty hinges and locking arrangement. Gaskit
on the door .The Refrigerator is fitted with Castor wheels for ease of mobility. |
| |
|
|
|
| |
Insulation |
|
Fully Automatic with Touch Screen, |
| |
|
|
|
| |
Temp. Controller |
|
PID (Programmable) Microprocessor Based Temperature Controller used for controlling 22o C ± 1o C
accuracy: 0.1o C |
| |
|
|
|
| |
Temp. Recorder |
|
Chart Recorder (Range -50 to +50oC), Accuracy: .2oC, for Temp. Display visually& for continuous
temperature monitoring
weekly |
| |
|
|
|
| |
Control panel |
|
Controls to compromise fully automatic temperature Indicator cum PID (Progra.) Microprocessor Based
Temperature Controller with PT – 100 Sensor, Temp. Recorder, Compressor, fans, Alarm etc. |
| |
|
|
|
| |
Inspection Lamp |
|
One low watt bulb for internal inspection automatically / manual operated. |
| |
|
|
|
| |
Cooling Unit |
|
Kirloskar make Compressor, which is CFC Free. |
| |
|
|
|
| |
Power Supply |
|
230 Volts, Single Phase 50HZ,15 amp and Earthing Necessary |
| |
|
|
|
| |

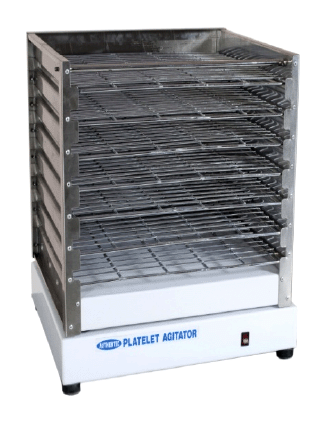

Shelves |
|
7 Nos in SS Jali |
| |
|
|
|
| |
Safety |
|
Electronic safety device to be incorporated that will give audiovisual alarming case of power failure along with
Voltage Stabilizer along with Low & High Voltage protector |
| |
|
|
|
