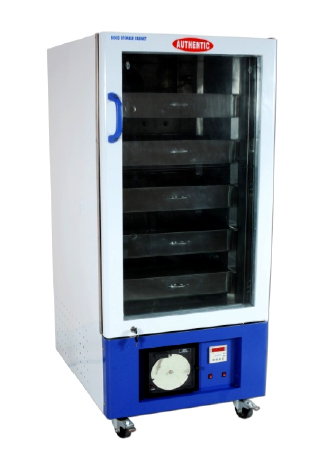

○ Constructed in double wall-PUF\
Insulated.
○ Interior : Stainless Steel 22 G
○ Exterior : G CRCA
MS Sheet 1.2 mm
○ Full front opening door.
○ Door : fitted on the chamber by
heavy-duty hinges.
○ Locking arrangement.
○ Gaskets on the door.Fitted with Castor lockable
wheels for ease of mobility ○ Doubled walled typed with transparent full view Tufund glass door.
Capacity
150+ Standard Blood Bags of each 450 ml capacity
Digital Temp. Controller
Microprocessor Based Digital Temperature Controller cum Indicator used for controlling 4o to 6oC ± 1o C,
accuracy : 0.1o C, Fan Fitted in the inner side for proper air circulation in chamber
Air circulation
Having provision for Air Circulation through internal fan facility. Temp gradient less than 0.5° C
Inspection Lamp
One low watt bulb for internal inspection automatically / manual operated,
Cooling Unit
Kirloskar / Copeland ISI Mark Compressor, which is CFC Free.
Weight of unit
Approx 160 kg.
Power Supply
230 Volts, Single Phase 50HZ,
Trays / Shelves
No of Trays 5 in S.S. for proper Storage of blood bags. It is fitted on Imported Telescopic
Channels.
Safety
○ Electronic safety device.
○ Low & High Voltage
protector.
○
Audiovisual alarming case of power failure,
opening the Door, & in case of high & Low
internal temperature of BBR.
Optional Accessories

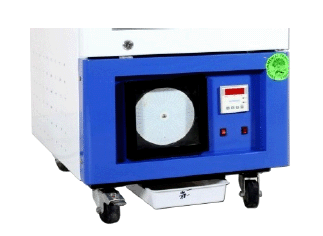

1. Weekly Circular Chart Recorder:- For Continuous Temp.
Recording Weekly Temperature Circular Chart Recorder (Range -10oC to + 10oC), Accuracy: 0.2oC, for Temp. Display visually & for
continuous temperature monitoring.
2. Voltage Stabilizer
