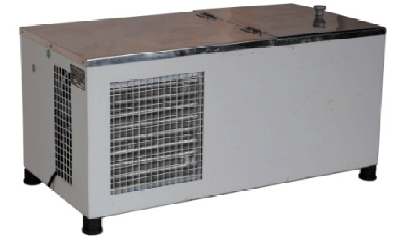

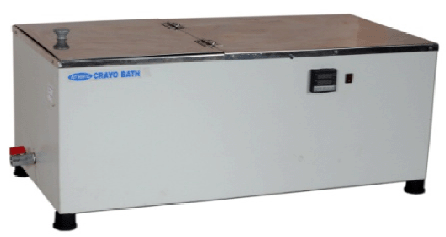

The chamber is constructed in double wall. The interior of the chamber
is made of Stainless Steel and the exterior is made out of G CRCA MS
sheet with two coats of primer and 3 coats of DUCO paint with PUF
insulation in between. The chamber provides with a full top opening
double wall typed PUF insulated door. The door is fitted on the
chamber by heavy-duty hinges and locking arrangement. Gasket on
the door. Provision for water exit.
Blood Bag Stand:
Blood Bag Stand (adjustable for all types of bags) to hold 8 Bags in SS
Water circulation:
Water flow 10litre per minute by imported submersible motor
Temp. Controller:
PID (Programmable) Microprocessor Based Temperature Controller
used for controlling 4o C ± 1o C accuracy: 0.1o C
Cooling Unit:
Kirloskar make Compressor, which is CFC Free.
Power Supply:
220 Volt, 50 HZ Single Phase,10amps
Additional facility:
Door step quickest after sale services
