○ Constructed in double wall-PUF Insulated.
○ Interior : Stainless Steel 22 G
○ Exterior : G CRCA MS
Sheet 1.2 mm
○ Doubled walled typed with transparent full
view Tufund glass door. ○ Door : fitted on the chamber
by heavy-duty hinges.
○ Locking arrangement.
○ Gaskets on the door.
Fitted with Castor lockable
wheels for ease of mobility

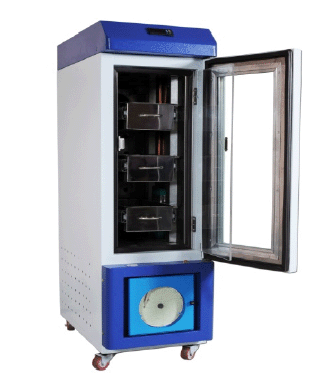

○ Full front opening door.
Capacity
20 Standard Blood Bags of each 450 ml capacity
Digital Temp.
Controller
Microprocessor Based Digital Temperature Controller cum Indicator used for controlling 4o± 1o C,
accuracy : 0.1o C, Fan Fitted in the Inner side for proper air circulation in chamber
Air circulation
Having provision for Air Circulation through internal fan facility. Temp gradient less than 0.5° C
Inspection Lamp
One low watt bulb for internal inspection automatically / manual operated,
Power Supply
230Volts, Single Phase 50HZ,
Trays / Shelves
No of Trays 3 in S.S. for proper Storage of blood bags. It is fitted on Imported Telescopic
Channels.
Safety
○ Electronic safety device.
○ Low & High Voltageprotector.
○ Audiovisual alarming case of power failure,opening the Door, & in case
of high & Low internal temperature of BBR.
Optional
Accessories
1. Weekly Circular Chart Recorder:- For Continuous Temp. Recording
Weekly
Temperature Circular Chart Recorder (Range -10oC to + 10oC),
Accuracy: 0.2oC, for
Temp. Display visually & for continuous temperature monitoring.
2. Servo Voltage Stabilizer
